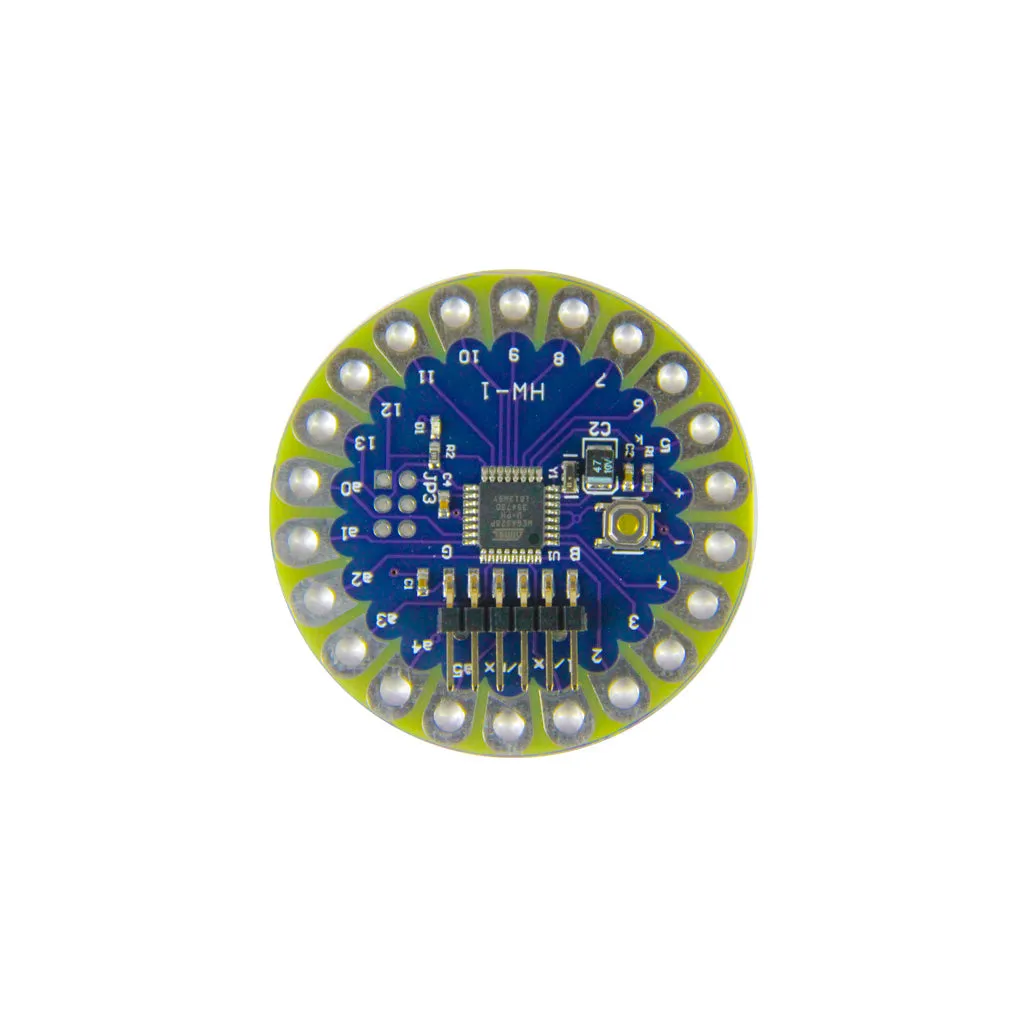

LilyPad Arduino is a microcontroller board designed for wearables and e-textiles. The main board consisting of an ATmega328 @ 8MHz with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible. Board will run from 2V to 5V. The latest version of the LilyPad supports automatic reset for even easier programming. The back side of the LilyPad is now completely flat! The board now use a surface mount programming connector to keep the header from poking through.
LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available.
It can be sewn to fabric and similarly mounted power supplies, sensors, and actuators with conductive thread. The board is based on the ATmega328V
Note: Don't power the LilyPad Arduino with more than 5.5 volts, or plug the power backwards: you'll kill it!
Note: This is a clone product with the same specifications as the original but with a solid PCB.
Specifications
| Microcontroller | or |
| Operating Voltage | 2.7-5.5 V |
| Input Voltage | 2.7-5.5 V |
| Digital I/O Pins | 14 |
| PWM Channels | 6 |
| Analog Input Channels | 6 |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 16 KB (of which 2 KB used by bootloader) |
| SRAM | 1 KB |
| EEPROM | 512 bytes |
| Clock Speed | 8 MHz |
Warning: Don't power the LilyPad Arduino with more than 5.5 volts, or plug the power in backwards, you'll kill it.
